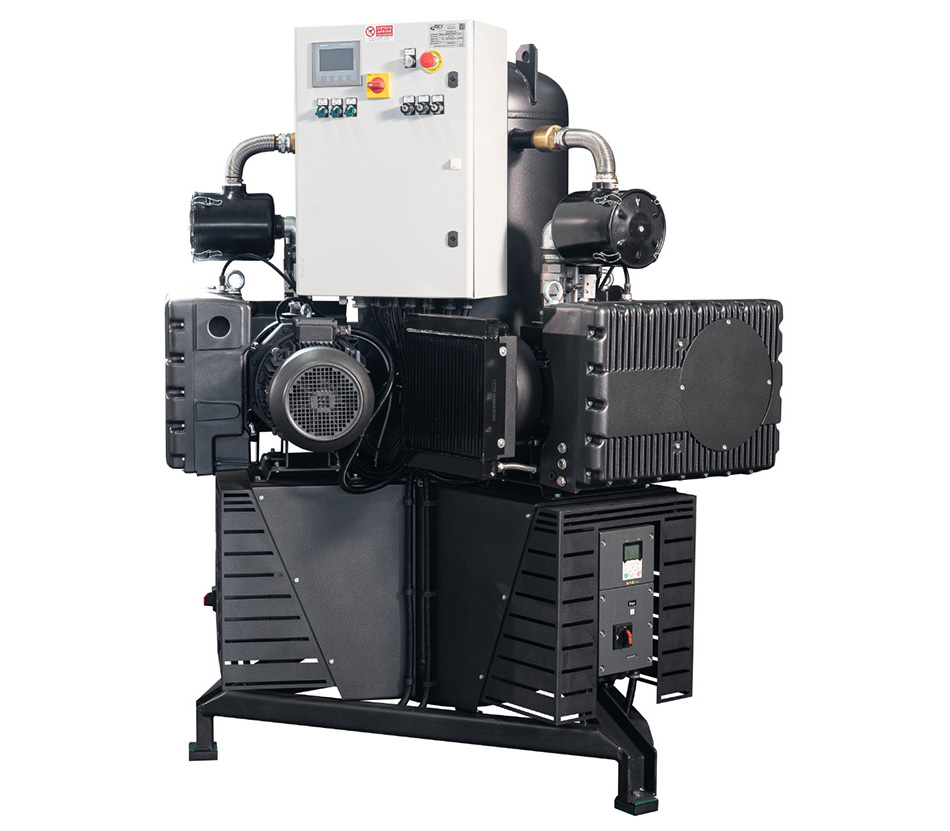

Vertical vacuum systems

The vertical vacuum systems are composed of vacuum pumps, vertical vessel and control panel for managing the operation of the vacuum pumps by software or manually. They are equipped with digital vacuum display, operating hours counter, switch for manually or automatic operation, motor starter warning light, inlet filters, discharge condensed air trap. As optional we can supply oil level alarm, vacuum level alarm, filters replace alarm, remote alarms and remote control. The vertical vacuum systems are characterized be small foot print, easy servicing, easy operation, easy maintenance and energy saving. The vertical vacuum systems can also be customized with vessel of different sizes and vacuum pumps of different capacities.

CARATTERISTICHE	U.M.	GRV3/450	GRV3/600	GRV3/800	GRV3/900	GRV3/1100
*TECHNICAL FEATURES*
Portata	mc/h	152X3	200X3	260X3	300X3	360X3
*Capacity*
Pressione finale	mbar	20	20	20	20	20
*Final pressure*
Tensione	Volt	230-400	230-400	400-690	400-690	400-690
*Voltage*
Potenza	KW	3X3	4X3	5.5X3	7.5X3	7.5X3
*Power*
N° giri	(min) -¹	1450	1450	1450	1450	1450
*Twist number*
Frequenza	Hz	50	50	50	50	50
*Frequency*
Livello di pressione acustica	dB(A)	73	75	77	77	78
*Sound pressure level*
Attacco aspirazione serbatoio		Flangia UNI 2276/67 DN150 PN6
*Tank suctioning connection*		UNI 2276/67 DN150 PN6 Flange
Peso	Kg	548	715	790	820	820
*Weight*
Larghezza	mm	1790	1790	1790	1790	1790
*Width*
Lunghezza	mm	1790	1790	1790	1790	1790
*Length*
Altezza	mm	2100	2100	2100	2100	2100
*Height*
Volume serbatoio	Litro	500	500	500	500	500
*Tank volume*	litre
