COMPRESSORS

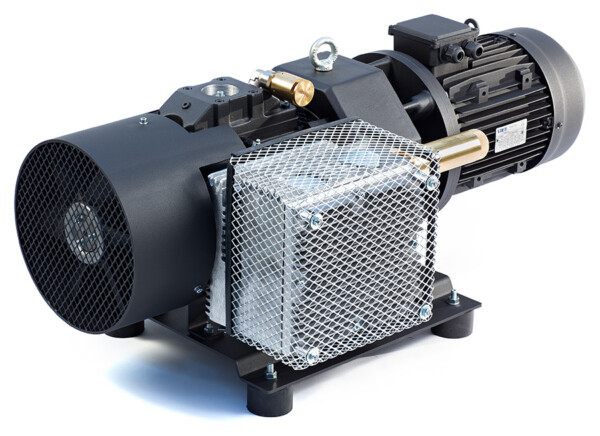

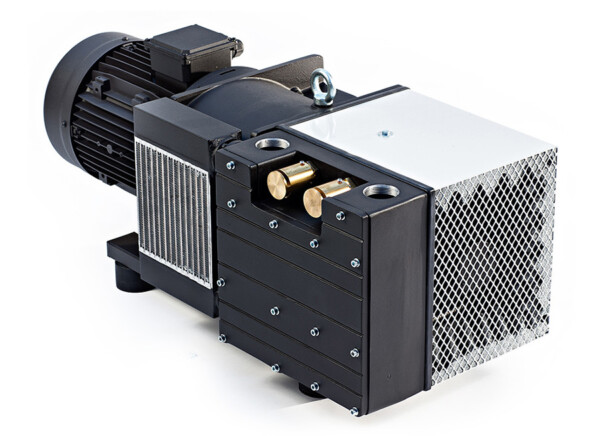

Dry running rotary vane compressors

Dry running rotary vane compressors are equipped with blades, bearings on both sides of the rotor, flanged motor, elastic coupling, safety valve. They are characterized by air cooling system, dry running (oil free), oil-less drain, easy servicing and maintenance. They are available with capacity range from 6 up to 248 mc/h and pressure on continuous work up 1.5 bar(g).

CARATTERISTICHE   U.M. GBSC 6 GBSC 10 GBSC 15 GBSC 25 GBSC 35 DBSC 80 DBSC 100 DBSC 140 DBSC 200 DBSC 250
TECHNICAL FEATURES
Portata 50 Hz mc/h 6 10 15 25 35 80 107 146 197 248
Capacity 60 Hz 7 12 18 30 42 96 128 175 236 297
Sovrapressione finale   bar 0,8 0,8 0,8 0,8 0,8 1.5 1,5 1.5 1,5 1,2
Final over pressure
Tensione 50 Hz Volt 230-400 230-400 230-400 230-400 230-400 230-400 400-690 400-690 400-690 400-690
Voltage 60 Hz 276-480 276-480 276-480 276-480 276-480 276-480 480-828 480-828 480-828 480-828
Potenza 50 Hz KW 0,22 0,37 0,55 0,88 1,1 4 5,5 7,5 9,2 9,2
Power 60 Hz 0,37 0,75 0,75 1,1 1,5 5,5 7,5 9,2 11 11
N° giri 50 Hz (min) -¹ 1450 1450 1450 1450 1450 1450 1450 1450 1450 1450
Twist number 60 Hz 1740 1740 1740 1740 1740 1740 1740 1740 1740 1740
Livello di pressione acustica 50 Hz dB(A) 62 68 68 70 72 78 79 79 82 82
Sound pressure level 60 Hz 63 69 69 71 73 79 80 80 83 83
Attacco aspirazione   Pollice 1/4 3/8 1/2 3/4 3/4 1.1/2 1.1/2 1.1/2 2 2
Suctioning connection   Inch
Attacco scarico 50 Hz Pollice 1/4 1/2 1/2 3/4 3/4 1.1/2 1.1/2 1.1/2 2 2
Draining connection 60 Hz Inch
Peso 50 Hz Kg 12 22 26 33 35 145 155 165 200 200
Weight 60 Hz 14 26 33 35 38 155 165 175 292 292
Larghezza   mm 220 230 230 230 275 395 395 395 610 610
Width
Lunghezza 50 Hz mm 265 430 450 490 510 875 940 980 1130 1130
Length 60 Hz 295 450 483 532 536 940 980 980 1320 1320
Altezza   mm 160 230 230 230 220 450 450 450 500 500
Height
