VACUUM PUMPS

Oil lubricated rotary vane vacuum pumps

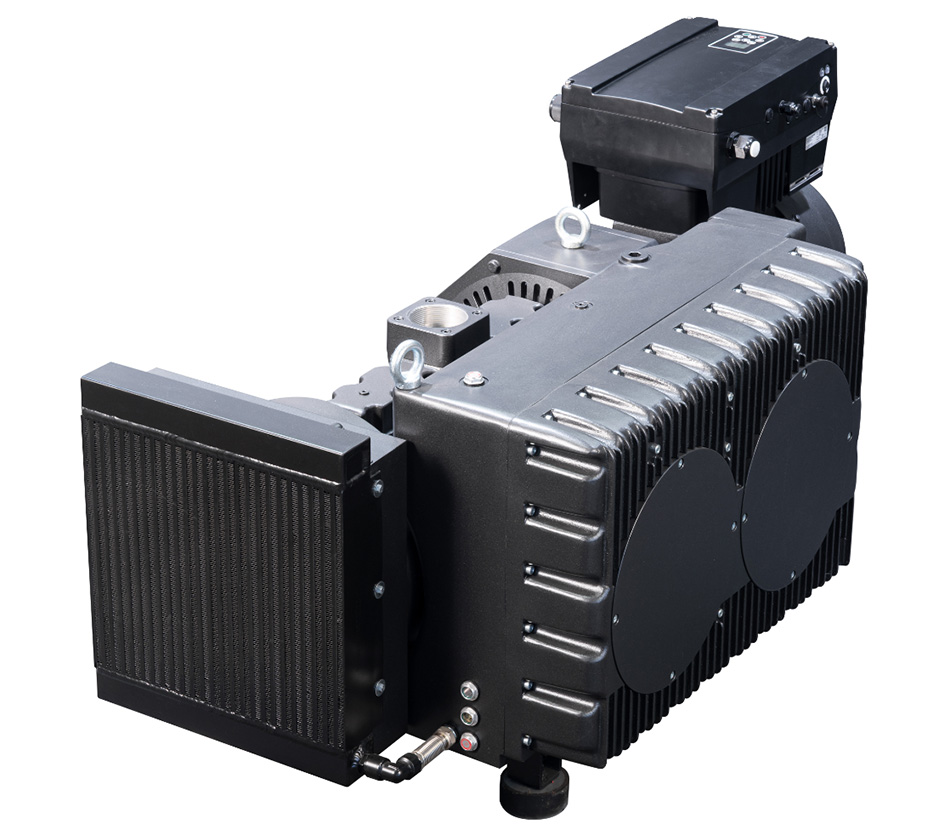

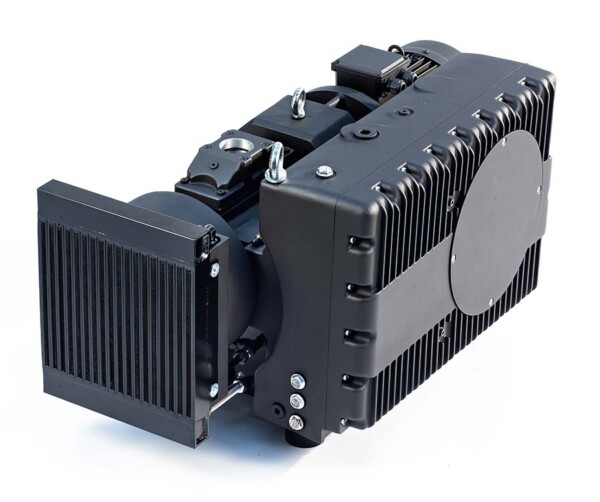

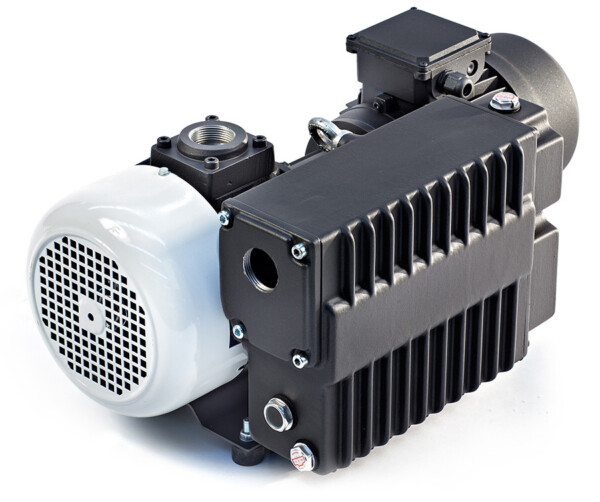

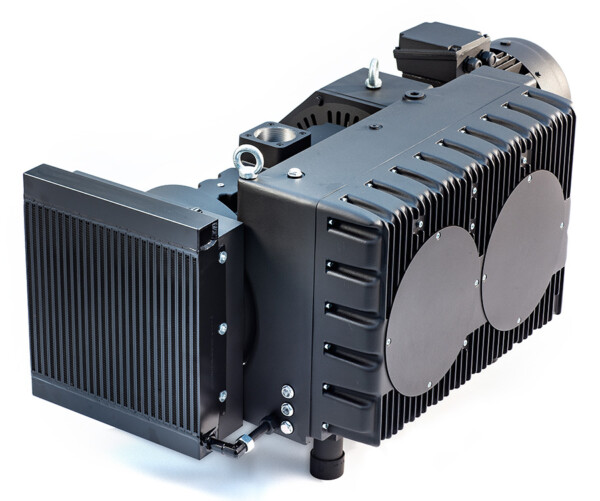

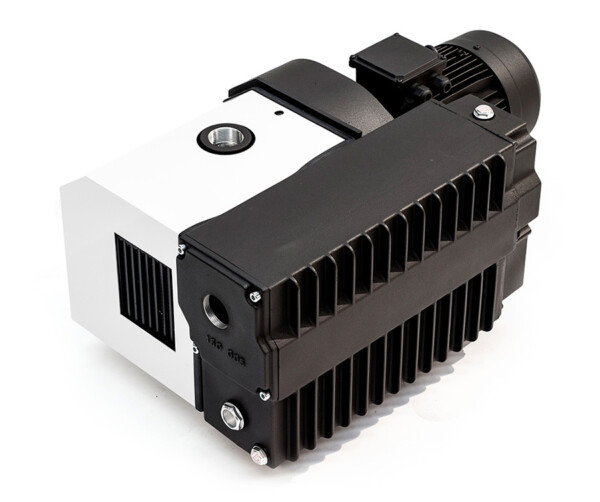

The DBL series are oil lubricated rotary vane vacuum pumps. They are air cooled, equipped with flanged motor, bearings on both sides of the rotor and equipped with oil/air heat exchanger from DBL 160 up to DBL 730. Really solid and reliable, they are suitable for 24 hours continuous operation. They are characterized by high emptying speed, low noisiness, minimal levels of oil emissions and easy maintenance. Capacity range is between 28 and 696 mc/h. The oil lubricated rotary vane vacuum pumps are available with final pressure up to 0.5 mbar absolute.

DBL160-DBL200-Pompa-per-vuoto-a-palette-lubrificata-con-riciclo-olio

CARATTERISTICHE		U.M.	DBL 2.25	DBL 2.35	DBL 2.50	DBL 2.70	DBL 110	DBL 160	DBL 210	DBL 265	DBL 315	DBL 365	DBL 420	DBL 530	DBL 630	DBL 730
*TECHNICAL FEATURES*
Portata	50 Hz	mc/h	28	38	46	65	106	154	200	260	300	360	418	528	627	696
*Capacity*	60 Hz		33	45	55	78	127	184	240	312	360	432	501	633	752	835
Pressione finale		mbar	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5
*Final pressure*
Tensione	50 Hz	Volt	230-400	230-400	230-400	230-400	230-400	230-400	230-400	400-690	400-690	400-690	400-690	400-690	400-690	400-690
*Voltage*	60 Hz								400-690
Potenza	50 Hz	KW	0.75	1.1	1.1	1.5	2.2	3	4	5.5	5,5	7.5	9.2	11	15	15
*Power*	60 Hz		1.1	1.5	1.5	2.2	3	4	5.5	7.5	7.5	9.2	11	15	15	18.5
N° giri	50 Hz	(min) -¹	900	1450	1450	1450	1450	1450	1450	1450	1450	1450	1450	1450	1450	1450
*Twist number*	60 Hz		1080	1740	1740	1740	1740	1740	1740	1740	1740	1740	1740	1740	1740	1740
Livello di pressione acustica	50 Hz	dB(A)	68	67	67	68	69	71	72	73	74	76	78	79	82	83
*Sound pressure level*	60 Hz		68	67	68	69	70	71	73	74	75	77	79	80	83	84
Attacco aspirazione		Pollice	1.1/4	1.1/4	1.1/4	1.1/4	1.1/2	1.1/2	2	2	2	2	3	3	3	3
*Suctioning connection*		Inch
Attacco scarico	50 Hz	Pollice	1.1/4	1.1/4	1.1/4	1.1/4	1.1/2	1.1/2	2	2	2	2	4	4	4	4
*Draining connection*	60 Hz	Inch
Peso	50 Hz	Kg	57	61	61	64	92	104	190	190	200	210	390	415	445	445
*Weight*	60 Hz		60	64	64	69	104	111	200	200	210	230	415	445	445	485
Larghezza		mm	342	342	342	342	435	436	570	570	570	570	760	760	760	760
*Width*
Lunghezza	50 Hz	mm	635	635	635	643	765	805	1106	1130	1130	1230	1540	1590	1605	1605
*Length*	60 Hz		660	660	660	668	845	820	1150	1170	1170	1230	1590	1605	1605	1695
Altezza		mm	283	283	283	283	320	348	555	555	555	555	700	700	700	700
*Height*
Carica olio		Litro	2	2	2	2	3	3	8	8	8	8	16	16	16	16
*Oil charge*		litre
